Home > Products > Pipe plasma cutting machine > CNC Plasma and Oxyfuel Gas Pipe Cutting Equipment For Pipeline Engineering

CNC Plasma and Oxyfuel Gas Pipe Cutting Equipment For Pipeline Engineering

Product Description

Product Description
CNC Plasma and Oxyfuel Gas Pipe Cutting Equipment For Pipeline Engineering Roller bed intersection cutting robot ,the roller installation datum by gantry milling machine one time processing .ensure the accuracy and stability of equipment .The center-height of the chuck is floating adjustable ,using method as chuck floating without moving of pipe ,to improve the cutting quality of large diameter pipe .
Software Advantage
1.We are the first one develop the square tube cutting and beveling machine supplier in china.
2.Our control system together with Taiwan Advantech Industrial Computer.

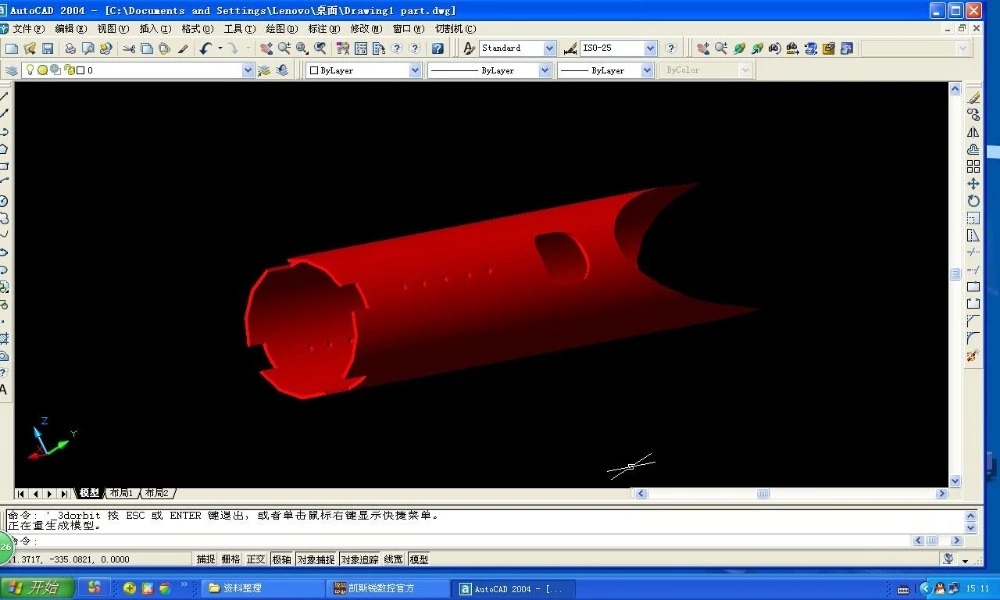

3.Easy to operate, modeling making is easy , only need from software through the centerline, easily create pipe, arc tube, square tube, rectangular tube, angle, channel, H-beam and other components . Training time is short , only need input wall thickness , bevel angle , threading length on the software , it can cut directly with the graphics in the gallery.
4.Software with better compatibility , support TEKLA,3D ,3S, STCAD and AutoCAD .
5.twist angle support.
6.Support API ,small angle cutting.
Software Advantage
7.No need secondary making the model , can input the the model into software one time,directly form the whole project budget chart of the materials . 8.Optimization nesting . 1)Support twist angle nesting 2)support remaining materials secondary nesting 9.After nesting can be batched into G code .Each pipe only need 3 seconds transfer into G code . 10.With Rich graphics database ,free offer to the customer 11.3D Modeling cutting track can spread out to see in a real time ,easy to know the process 12.Support continuous cutting,with high cutting efficiency . 13. Our software can enjoy lifetime updates for free.

Work Process of Machine

(1), programming Programming can be directly on the machine or offline editor. Using input cutting parameter selection menu type, such as outside diameter, wall thickness, bevel Angle, deviation, compensation data, and so on. At the same time a seamless connection can be made by other professional software such as STCAD. 2), loading and unloading of workpiece Operator initiator on the machine, the pipe placed in the tray by hoisting tools. (3), measurement level Operators according to pipe diameter deviation with a header hand lever level adjustment.

(4), pipe locking With adjustable third claw automatic centering chuck locking pipe diameter. (5), the open cut Move the cutting head to the tube cutting, automatic positioning device automatically according to the procedure under a cut, to complete the cutting process and according to the programming.
Application
Material :Workpiece materials apply range: Mild steel(stainless steel,copper and nickel pipes,cut by plasma) Type :round pipe Industry :Widely used in water/chemical oil&gas pipeline industries, marine engineering, offshore buildings,boiler&vessels,heat exchangers,etc.
Technical Parameters
Model
roller type pipe Cutting Machine
Round pipe
Effective cutting length :6/9/12m
round pipe diameter :180~1000mm or 325~1620mm ( can be customized)
Cutting method
1 Plasma+ 1 flame
Cutting speed
according plasma power source; flame cutting speed is 20-700mm/min
Driving method
Servo
Control system
pipe cutting system
Cutting length accuracy
±1.0mm
Bevel torch
Available (plasma upto 45 degree)
Integration dust extraction
Available (can be choosed)
Detailed Images
Related Products
Packing&Shipping
Packaging Details:Standard shipping package
After Sales Service
1. One year warranty for whole machine
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.
ottles in all shapes.
Company Introduction
YOMI is professional on CNC cutting machine powered by plasma and oxy-fuel. From basic plate cutting machine, Gantry cnc plasma cutting machine, table cnc plasma cutting machine and portable cnc plasma cutting machine, YOMI is also Leading manufacturer in pipe and profile cutting machine, from pipe cutting and beveling, tube cutting and beveling, beam/angle steel/ channel steel/flat buld processing. By developing our own system and software in 3D profiling, YOMI become the top brand in metal cutting with competitive price and professional products.
FAQ

1. What kinds of after-sales service can your company supply? One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can supply life long service. 2. Can you supply OEM Service? Yes, we can supply OEM service. 3. What is deliver time? We will delivery the goods within 15-20 work days after received payment. 4. What is your payment term? We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.

Contact us if you need more details on Pipe Roller. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cutting Machine For Large Pipe、Cnc Big Pipe Cutting Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
