Professional pipe optimization CNC system support AutoCAD model design support Tekla three-dimensional model support pipe splitting \ pipe optimization \ node expansion \ left and right replacement and other functions equipment design people-oriented, English interface is simple, advanced and reliable equipment for long-term continuous processing, stable and reliable operation control.
cnc plasma cutter / square round tube pipe steel cnc flame plasma cutting machine
Product Description
Product Description
cnc plasma cutter / square round tube pipe steel cnc flame Plasma Cutting Machine Tube Cutting Machine is a special pipe cutting equipment different shapes can be well cut through on irregular pipes out automatically after data input via control system,with calculation and programming unnecessary,This machine is widely used for pipeline cutting in industries such as construction,Chemical, shipbuilding, machinery engineering, metallurgy, electricity etc.
Main Feature of equipment
Software Advantage
1.Perfectly compatible with Tekla round pipe modelling.
2.Support end hole, slot and bevel cutting.
3.Support Second development of autopipe at AutoCAD.
4.Super high nesting speed and usage rate.
5.Break, Mirror, left&right, G code.Professional nesting software——PipeNest, with optimization function.Support offshore AWS small angle cutting process.
Advantage
1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility 2 A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
Application
Material :Workpiece materials apply range: Mild steel( stainless steel,copper andnickel pipes,cut by plasma) Type :round pipe Industry:Widely used in water/chemical oil&gas pipeline industries, marine engineering, offshore buildings,boiler&vessels,heat exchangers,etc.
Technical Parameters
Description | Parameters |
Round pipe diameter | 50~630mm 60~800mm |
Cutting power | Plasma/ flame |
Flame cutting thickness | Vertical cutting 6-60mm Bevel cutting 6-40mm |
Plasma cutting thickness | Pierce cutting 1-23mm Bevel cutting 5-14mm |
Effective cutting length | 12000mm |
Required workpiece ellipticity | ≤1% |
Cutting speed | 10～2000mm/min |
Moving speed | 10～6000 mm/min |
Flame bevel angle | Hole cutting ±55° Head cutting±60° |
Plasma bevel angle | ±45° |
Cutting precision | ±1.5mm |
Precision standard | ISO9013-2002 、ISO8206-1991JB/T10045.4-1999JB |
Chunk type | Manual 3 claw linkage self-centering |

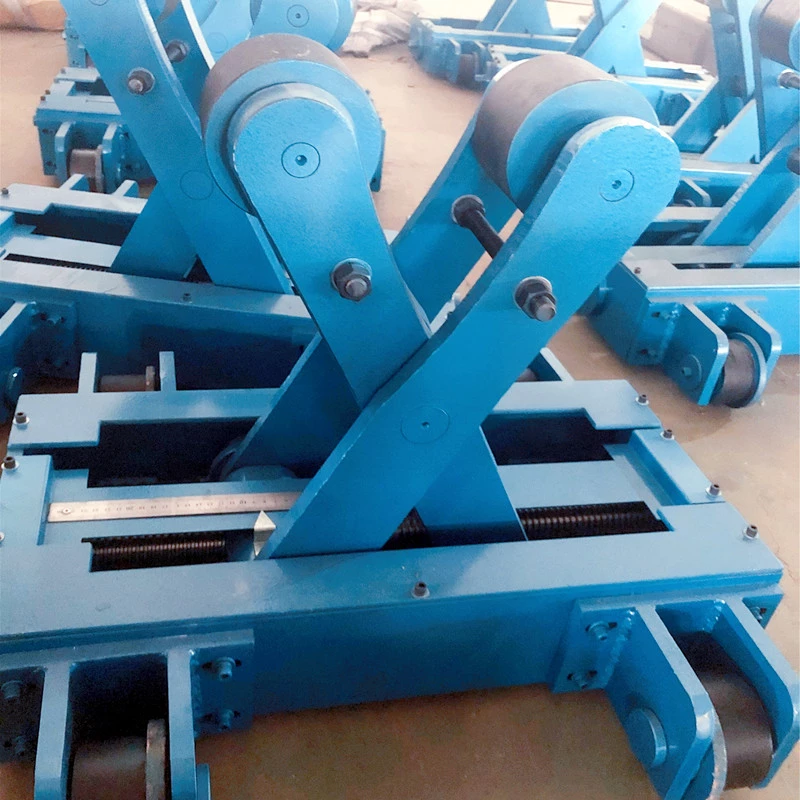

Bracket number | 4 groups（Bracket can move, but can not lift) The pipe is clamped by chunk to realize lifting and raise cutting performance. |
Size | (Length *width*height) 8000*3200*2700mm |
Weight | 6000kg |
Shipping | 40ft container |

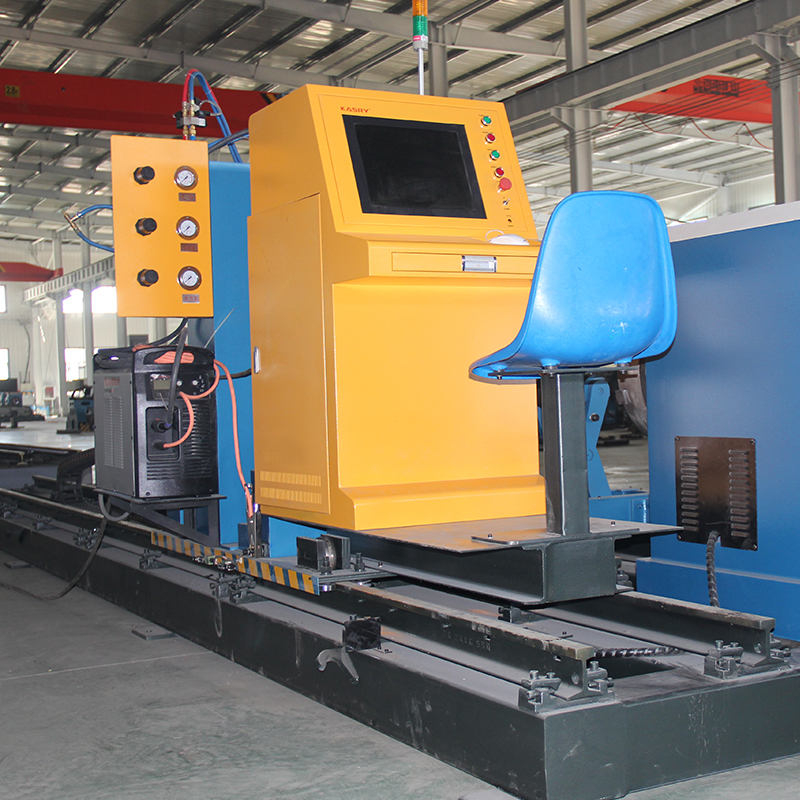

Detailed Images
Related Products
Packing&Shipping
Custom packaging
Loading crane transfer to truck
Package
With plastic packing inside
Loading and delivery
40' Gp container
After Sales Service
1. One year warranty for whole machine
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy
operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated
machines.
3. Full stock of spare parts and comsumbles are at competitive price.ottles in all shapes.
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy
operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated
machines.
3. Full stock of spare parts and comsumbles are at competitive price.ottles in all shapes.
Company Introduction
YOMI is professional on CNC cutting machine powered by plasma and oxy-fuel. From basic plate cutting machine, Gantry cnc plasma cutting machine, table cnc plasma cutting machine and portable cnc plasma cutting machine, YOMI is also Leading manufacturer in pipe and profile cutting machine, from pipe cutting and beveling, tube cutting and beveling, beam/angle steel/ channel steel/flat buld processing. By developing our own system and software in 3D profiling, YOMI become the top brand in metal cutting with competitive price and professional products.
FAQ
1. What kinds of after-sales service can your company supply? One year's warranty for whole Welding Machine. We will send spare parts for free during warranty period. About main board, we can supply life long service. 2. Can you supply OEM Service? Yes, we can supply OEM service. 3. What is deliver time? If there are welding machines at stock, we will delivery the goods within 15-20 work days after received payment. 4. What is your payment term? We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
