Roller type large diameter pipe cnc plasma cutting and beveling machine

Product Description

Product Description

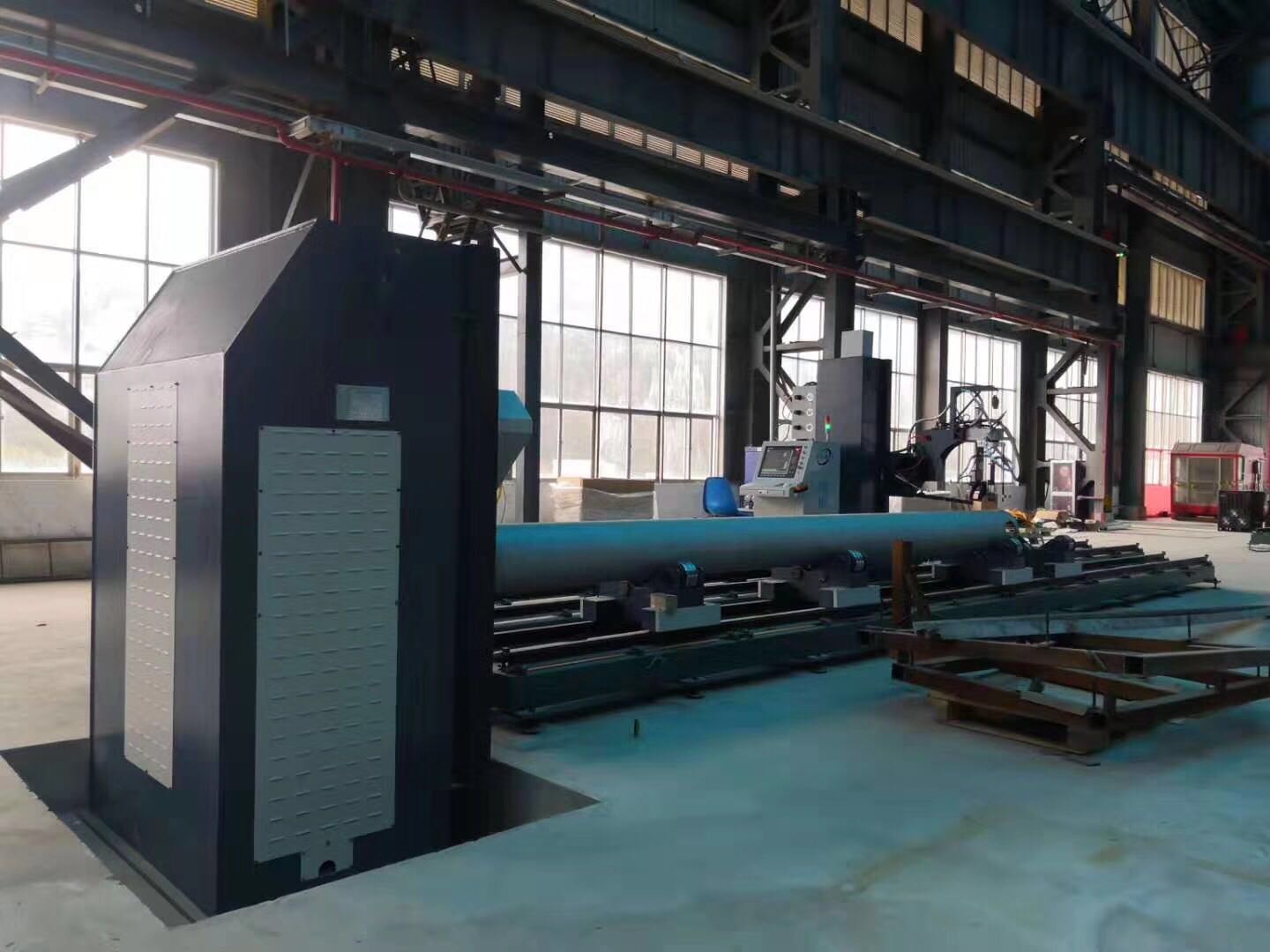

Roller type large diameter pipe cnc plasma cutting and beveling machine The roller type is composed of a lifting head box, a roller bracket and a cutting trolley. The roller bracket adopts a fixed roller spacing method to support pipe. It is convenient to load the material and does not need to manually adjust the distance of the roller. Manually hanging the pipe on the roller bracket can automatically center it. After adjusting the center of the pipe, it will be cut with the trolley after cutting.
Software Advantage
1.We are the first one develop the square tube cutting and beveling machine supplier in china.
2.Our control system together with Taiwan Advantech Industrial Computer.
3.Easy to operate, modeling making is easy , only need from software through the centerline, easily create pipe, arc tube, square tube, rectangular tube, angle, channel, H-beam and other components . Training time is short , only need input wall thickness , bevel angle , threading length on the software , it can cut directly with the graphics in the gallery.
4.Software with better compatibility , support TEKLA,3D ,3S, STCAD and AutoCAD .
5.twist angle support.
6.Support API ,small angle cutting.
Software Advantage
7.No need secondary making the model , can input the the model into software one time,directly form the whole project budget chart of the materials . 8.Optimization nesting . 1)Support twist angle nesting 2)support remaining materials secondary nesting 9.After nesting can be batched into G code .Each pipe only need 3 seconds transfer into G code . 10.With Rich graphics database ,free offer to the customer 11.3D Modeling cutting track can spread out to see in a real time ,easy to know the process 12.Support continuous cutting,with high cutting efficiency . 13. Our software can enjoy lifetime updates for free.

Work Process of Machine

(1), programming Programming can be directly on the machine or offline editor. Using input cutting parameter selection menu type, such as outside diameter, wall thickness, bevel Angle, deviation, compensation data, and so on. At the same time a seamless connection can be made by other professional software such as STCAD. 2), loading and unloading of workpiece Operator initiator on the machine, the pipe placed in the tray by hoisting tools. (3), measurement level Operators according to pipe diameter deviation with a header hand lever level adjustment.

(4), pipe locking With adjustable third claw automatic centering chuck locking pipe diameter. (5), the open cut Move the cutting head to the tube cutting, automatic positioning device automatically according to the procedure under a cut, to complete the cutting process and according to the programming.
Application
Material :Workpiece materials apply range: Mild steel( stainless steel,copper andnickel pipes,cut by plasma) Type :round pipe Industry :Widely used in water/chemical oil&gas pipeline industries, marine engineering, offshore buildings,boiler&vessels,heat exchangers,etc.
Technical Parameters
Round pipe diameter
108~1000mm  219~1210mm
Cutting length :
6000mm 9000mm 1200mm
Cutting methed
 plasma and flame(oxy-fuel)
Cutting speed
10~2000mm/min
Travelling speed
10~6000mm/min
Plasma power brand
Hyperthem/ Kjillbery/Huayuan
Driving method
Japan Panasonid Servo motor
Control system
Adcancetch IPC with Yomi PIP
Programing software
Curve library, Tekla, AuotoCAD
Cutting length accuracy
±1.5mm
The axial swing angle of the cutting torch
α=±60°
The radial swing angle of the cutting torch
β=±55°
Oblique crossing angel
15°~170°
Angle error
±1°
Bevel angle
plasma≦±45°  flame≦±55°
Detailed Images
Related Products
Packing&Shipping
Packaging Details:Standard shipping package
After Sales Service
1. One year warranty for whole machine
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.
ottles in all shapes.
Company Introduction
YOMI is professional on CNC cutting machine powered by plasma and oxy-fuel. From basic plate cutting machine, Gantry cnc plasma cutting machine, table cnc plasma cutting machine and portable cnc plasma cutting machine, YOMI is also Leading manufacturer in pipe and profile cutting machine, from pipe cutting and beveling, tube cutting and beveling, beam/angle steel/ channel steel/flat buld processing. By developing our own system and software in 3D profiling, YOMI become the top brand in metal cutting with competitive price and professional products.
