Sheet Metal CNC Plate Drilling Machine for Steel Flange Holes Fabrics

Product Description

Product Description

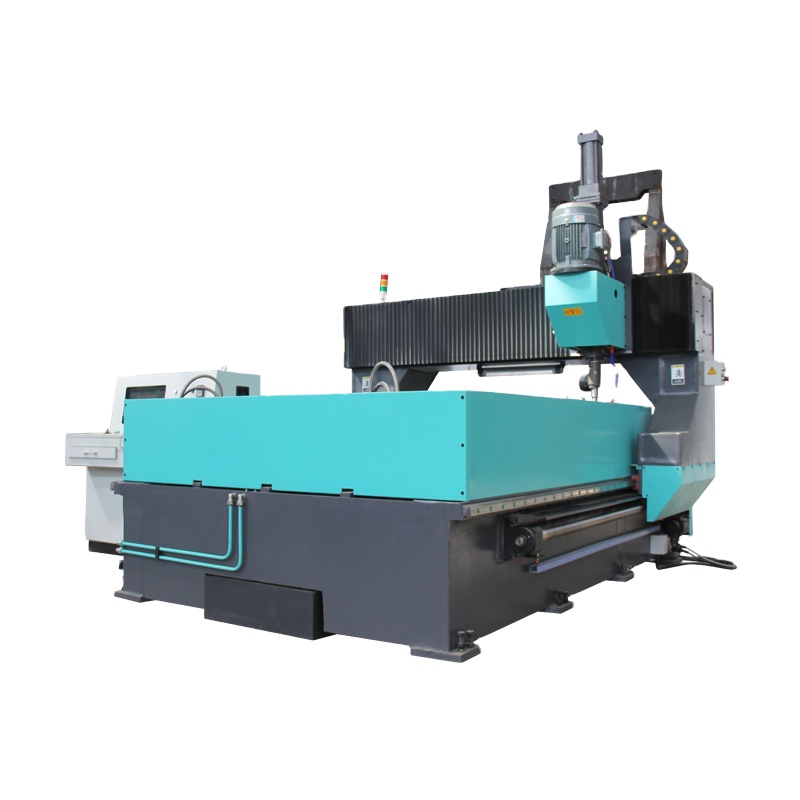

Sheet Metal CNC Plate Drilling Machine for Steel Flange Holes Fabrics This machine is mainly composed of bed ,gantry,vertical slide,drilling power head ,hydraulic system,control system ,centralized lubrication system ,cooling system and chip removal system and so on.
Equipment features
.1.The bed is made of high quality gray cast iron with stable performance and no deformation. 2.Spindle hydraulic feed ,motor adopts Germal SEW reducer motor,high efficiency and very durable . 3. Workpiece clamping is clamped by hydraulic clamping cylinder ,small workpiece can be clamped at four corners if worktable, 4. Shortening production preparation period and improving production efficiency.

5. Japan servo motor+CNC system control.Gantry mobile dual servo motor +ball synchronors dual drive .
Advantage
--CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfer angle. -- Can automatically find holes to drill at X.Y axis. -- Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously. CNC, PLC systems, CRT display. -- Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing. --Automatic chip removal, coolant circulation cooling. --Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.
Technical Parameters
Item
Parameter
Processing range(mm)
2000*1200 2000*1600 2000*2000 3000*1600
Thickness(mm)
15-100
Number of spindle
1
Spindle model
Morse 4# cone hole
Spindle speed
120-560
Feed mode
servo motor feed
Feed stroke(mm)
240
Drilling hole diameter(mm)
Φ12-Φ50 (OptionalΦ12-Φ63)
Motor power(KW)
5.5 (Optional7.5)
Clamping method
Gantry double-sided button control
Control method
SIEMENS CNC system/plc+PC

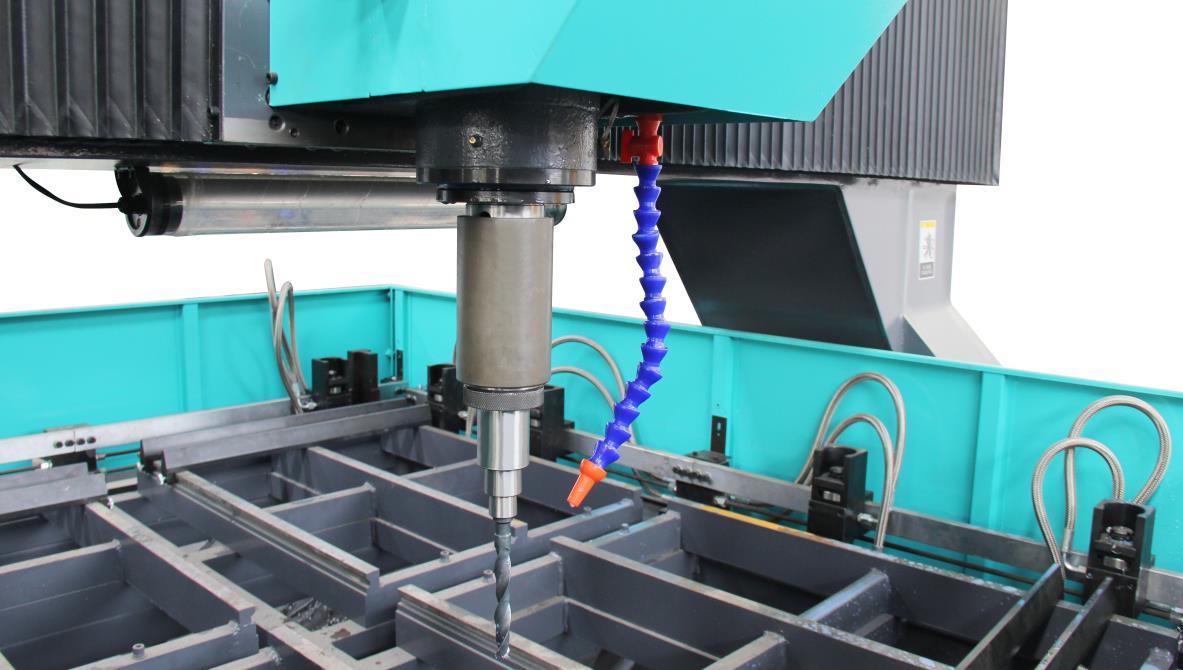

Detailed Images

Cutting sample:


Packing&Shipping
Packaging Details:Standard shipping package
After Sales Service
1. One year warranty for whole machine
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.
ottles in all shapes.
