Dynamic Support Design Cnc 3D Channel Angle H Beam Steel Drilling Machine

Product Description

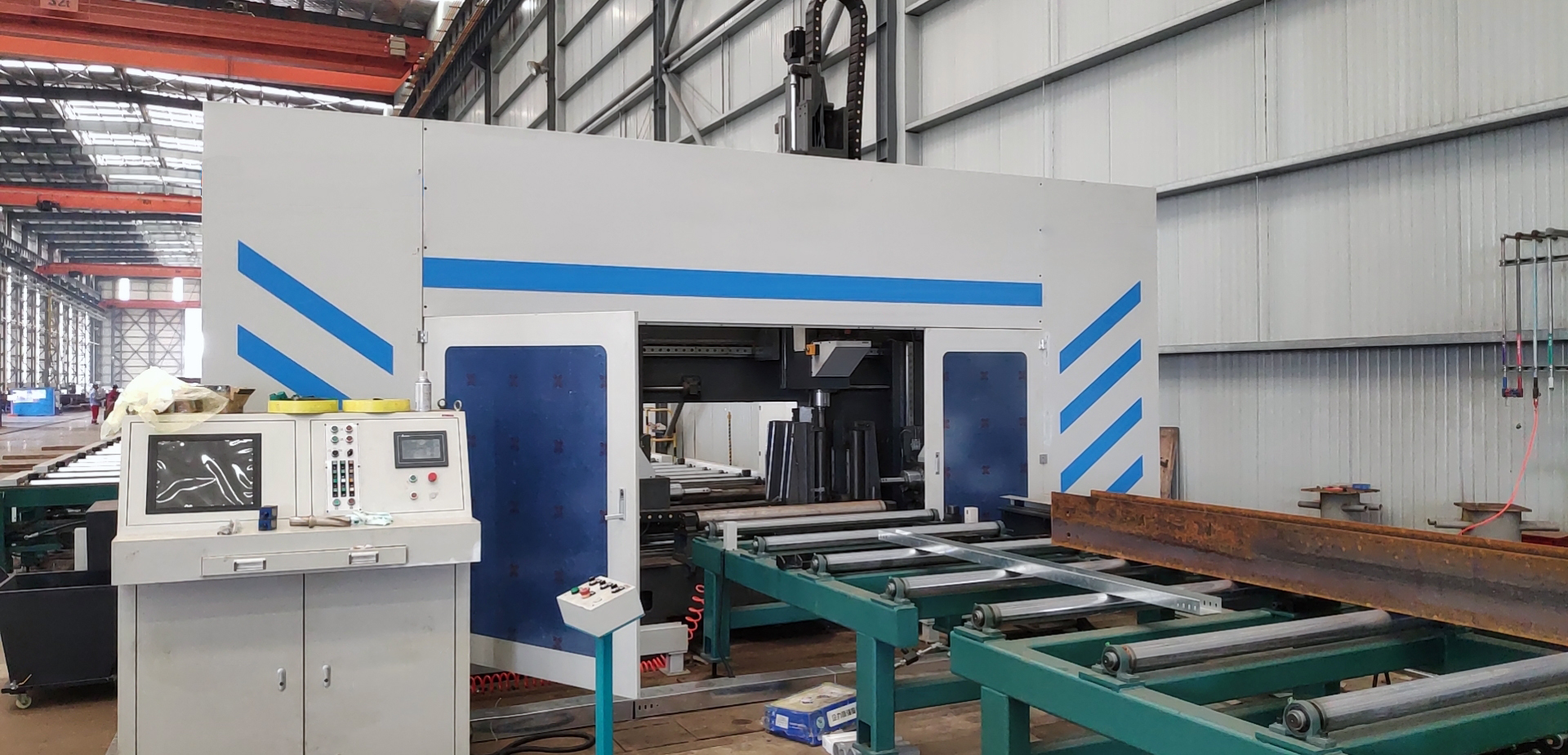

Dynamic Support Design Cnc 3D Channel Angle H Beam Steel Drilling Machine High-speed 3D CNC drilling machine production line, which includes 3D CNC drilling machine host, material roller and feeding trolley, electrical control system and hydraulic system,it can be widely used in high-rise buildings, bridges, power station boilers, three-dimensional garages, offshore oil well platforms, plant construction, etc. It is especially suitable for the processing of H-beams and channel steel in steel structures. It has the characteristics of high precision and convenient operation. It is an indispensable and efficient equipment for quality assurance in the steel structure manufacturing industry.

Equipment features

1.Beam secondary processing production line consists of high-speed CNC 3D drilling and h beam cutting robot to complete beams drilling and hot cutting processing. The equipment layout covers a total length of 70 meters and a width of 10 meters. 2.Applicable workpiece materials: carbon steel, stainless steel.

Including (work station, roller conveyors, feeding trolley and trolley track, finished workpiece receiving table).

It is conveyed to the workstation through each transfer roller table, and three groups of power drills are used to drill the three sides of the profile steel to achieve the cold processing design of the hole group of the profile steel connection plate.

Advantage

1.Multi-spindle h beam drilling machine adopts carriage for feeding, and the carriage is driven by servo motor and rack-and-point, and with encoder for feedback,enabling precision position of workpiece. 2. Three slipways are all controlled by servo motor ,guided by precision liner roller guide and driven by AC servo motor and ball screw to ensure the positioning accuracy 3.The spindles are precision spindles with high rotary accuracy and high rigidity, and driven by servo motor, with broad scope of application, rotation speed can be stepless changed in a wide range to meet the needs of a variety of speeds. 4.Multi-spindle h beam drilling machine is equipped with flange width detection and web height detection device , which can effectively compensate for the deformation of the workpiece to ensure the processing accuracy. 5. A wed is supported by many hydraulic support blocks in order to prevented deformation while drilling. 6. Both side-drilling heads are different. One is fixed and the other can do the horizontal movement, so that different web heights can be satisfied. 7.The high-grade atomizing cooling system can prolong the drills life. 8. Each of the spindles adopts the technology of self-controlled travel, it can moves along the two coordinates and realize drilling feeding, which ensure three spindles drilling simultaneously on the three sides of an H beam.

Technical Parameters

Model							YM-1000	YM-1250
Work Piece Size	H-Shaped Steel (web Height x flange width)			Max	1000 x 500mm	1250 x 610mm
	H-Shaped Steel (web Height x flange width)					Min	150 x 75	150 x 75
		Length (mm)	≥2700			≥2700	≥2700
		Length (mm)		≥610			≥610	≥610
		Max Work piece weight(kg)					5000	10000
		Max Thickness of web & flange(mm)					80	80
		Drilling Diameter (mm)					Φ12-Φ33.5	Φ12-Φ33.5
		Drilling Diameter (mm)						Φ12-Φ26.5	Φ12-Φ26.5
Drilling Spindles	Spindles number					one spindle respectively on top,left,right;Total:3 spindles
		Rotating speeds(Steples speed adjustment)					180-650
		Max feeding stroke (mm)					left,right:140 Top:240 or 325
		Feeding speed (mm/min)					20-300
		Displacement of horizontal spindle (mm)					In the direction of work piece length:520
		Displacement of horizontal spindle (mm)						Above vertical base level:20-480	Above vertical base level:20-580
		Displacement of vertical spindle (mm)					In the direction of work piece length:520
		Displacement of vertical spindle (mm)						Beyond horizontal base level:45-920	Beyond horizontal base level:45-1160
Overall Dimensions(L x W x H)(mm)							4450 x 3050 x 3520	4700 x 3050 x 3520
Rated Power (KW)							28
Gross Weight							≈7000 (Appr.)	≈8500 (Appr.)
Power							3 Phase 480V 60Hz or as your requirement.

Cutting sample

Packing&Shipping

Packaging Details：Standard shipping package

After Sales Service

1. One year warranty for whole machine
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.ottles in all shapes.

Company Introduction

YOMI is professional on CNC Cutting Machine powered by plasma and oxy-fuel. From basic plate cutting machine, Gantry cnc Plasma Cutting Machine, table cnc plasma cutting machine and portable cnc plasma cutting machine, YOMI is also Leading manufacturer in pipe and profile cutting machine, from pipe cutting and beveling, tube cutting and beveling, beam/angle steel/ channel steel/flat buld processing. By developing our own system and software in 3D profiling, YOMI become the top brand in metal cutting with competitive price and professional products.
