5. Japan servo motor+CNC system control.Gantry mobile dual servo motor +ball synchronors dual drive .
Cnc drilling tapping machine metal plate router
Product Description
Product Description

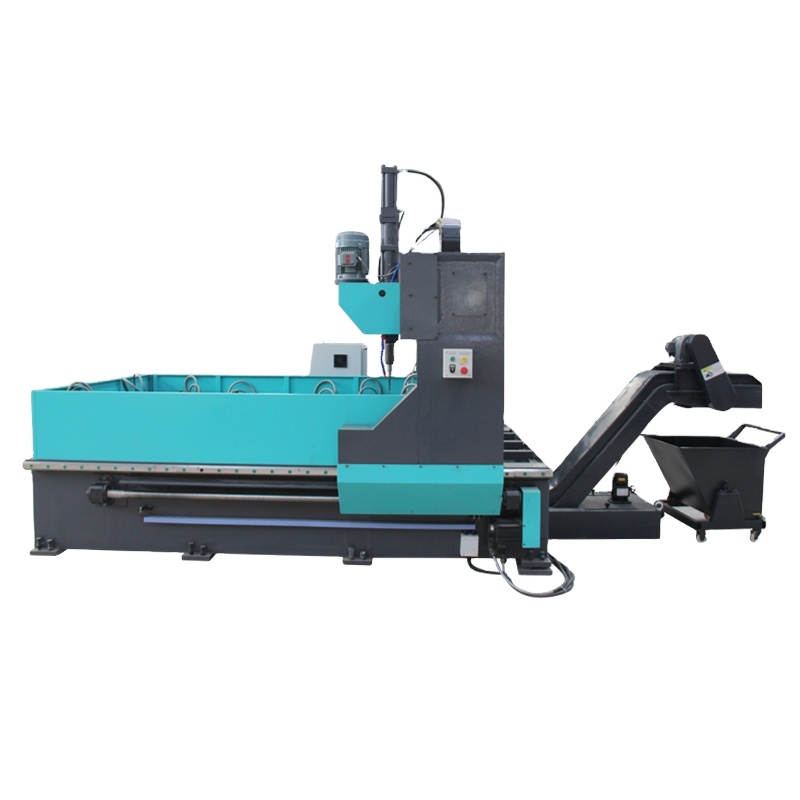

Cnc drilling tapping machine metal plate router This machine is mainly composed of bed ,gantry,vertical slide,drilling power head ,hydraulic system,control system ,centralized lubrication system ,cooling system and chip removal system and so on.
Equipment features
.1.The bed is made of high quality gray cast iron with stable performance and no deformation. 2.Spindle hydraulic feed ,motor adopts Germal SEW reducer motor,high efficiency and very durable . 3. Workpiece clamping is clamped by hydraulic clamping cylinder ,small workpiece can be clamped at four corners if worktable, 4. Shortening production preparation period and improving production efficiency.
Advantage
--CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfer angle. -- Can automatically find holes to drill at X.Y axis. -- Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously. CNC, PLC systems, CRT display. -- Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing. --Automatic chip removal, coolant circulation cooling. --Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.
Technical Parameters
Item | Parameter | ||||||
Processing range(mm) | 2000*1200 2000*1600 2000*2000 3000*1600 | ||||||
Thickness(mm) | 15-100 | ||||||
Number of spindle | 1 | ||||||
Spindle model | Morse 4# cone hole | ||||||
Spindle speed | 120-560 | ||||||
Feed mode | servo motor feed | ||||||
Feed stroke(mm) | 240 | ||||||
Drilling hole diameter(mm) | Φ12-Φ50 (OptionalΦ12-Φ63） | ||||||
Motor power(KW) | 5.5 (Optional7.5） | ||||||
Clamping method | Gantry double-sided button control | ||||||
Control method | SIEMENS CNC system/plc+PC | ||||||
Detailed Images
Cutting sample:
Packing&Shipping
Packaging Details：Standard shipping package
After Sales Service
1. One year warranty for whole machine
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.ottles in all shapes.
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.ottles in all shapes.
Company Introduction
YOMI is professional on CNC Cutting Machine powered by plasma and oxy-fuel. From basic plate cutting machine, Gantry cnc Plasma Cutting Machine, table cnc plasma cutting machine and portable cnc plasma cutting machine, YOMI is also Leading manufacturer in pipe and profile cutting machine, from pipe cutting and beveling, tube cutting and beveling, beam/angle steel/ channel steel/flat buld processing. By developing our own system and software in 3D profiling, YOMI become the top brand in metal cutting with competitive price and professional products.
Related Products
FAQ
1. What kinds of after-sales service can your company supply? One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can supply life long service. 2. Can you supply OEM Service? Yes, we can supply OEM service. 3. What is deliver time?
We will delivery the goods within 15-20 work days after received payment. 4. What is your payment term? We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
